FAD-30 A/D Converter Series

The FAD-30 A/D is a highly accurate solution intended for both static and dynamic weighing tasks, Low level load cell analogue signals are converted into high resolution signal that can be processed by a suitable PLC or computer, Suitable for both unipolar and bipolar inputs. Available in a range of industrial bus systems – Modbus RTU, Profibus DP, ProfiNET, CANopen, Ethernet TCP/IP, EtherCAT, EtheNET/IP and Powerlink. Simple DIN rail mounting via the IP20 rated housing.

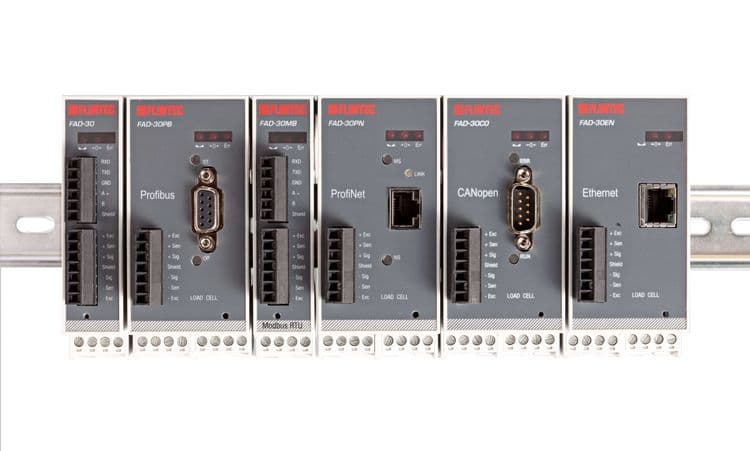

The FAD-30 analogue to digital converter series by Flintec.

Key Features

  • DIN rail mounted enclosure to IP20
  • 0.0015% accuracy
  • 4 or 6 wire load cell connection
  • Modbus, Profibus, ProfiNET, CANopen, EthernetTCP/IP, EtherCAT, EtherNET/IP and Powerlink bus options available
  • Connection for up to 18 load cells with 1000Ω bridge resistance
  • Conversion rate of 1600 measurements/sec

application

Universal Process Weighingsystems and process automation & control applications.
