<h2 class="line-above red-line-above">application</h2><p>General test and measurement as well as machine monitoring and control. Ideal for packaging machinery, assembly machinery or end-of-line test equipment.</p>

<h2 class="line-above red-line-above">Key Features</h2><ul><li>High accuracy ± 0.1%</li><li>Compact design</li><li>Built-in overload protection</li><li>Tension & compression force measurement</li><li>Low weight</li><li class="p1">Aluminium & stainless steel construction</li><li>Temperature compensated -15°C – + 71°C</li><li>Environmental protection to IP40</li></ul>

Industrial Robotics

Collaborative Robots (Cobots)

Agricultural Robotics

UKCA

RoHS

IP40

<p>The ISA is a series of miniature force transducers designed for applications in general test and measurement as well as machine monitoring and control.</p><p>The compact design enables the ISA to be easily embedded into machinery or test equipment – ideal for packaging machinery, assembly machinery or end-of-line test equipment.</p><p>Available in a range of standard capacities from 1lb through to 10lb; the ISA is configured for tension and compression force measurement. Full-bridge, bonded foil strain gauge technology provides excellent long-term stability and ensures high performance even in applications requiring in excess of 1 million load cycles. The ISA built-in overload protection operates in both tension and compression modes.</p><p>Constructed from high grade aluminium, the sensor is protected by means of a stainless steel cover.</p><p>The ISA can be supplied with standard cable configurations or with industry standard connectors. As an additional aid to system integrators, the ISA can be supplied as a TEDS (Transducer Electronic Data Sheet) enabled smart transducer this provides an on board memory chip storing manufacturing and calibration data.</p>

Datasheet

CAD Drawings













Test & Measurement

Process Automation & Control

Austria

Australia

Brazil

Canada

Colombia

Germany

Spain

France

India

Italy

Korea

Mexico

Netherlands

New Zealand

Singapore

Sweden

Vietnam

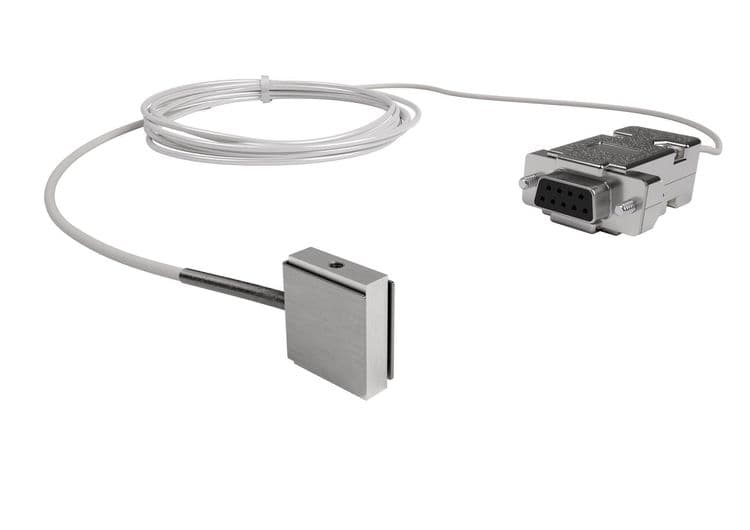

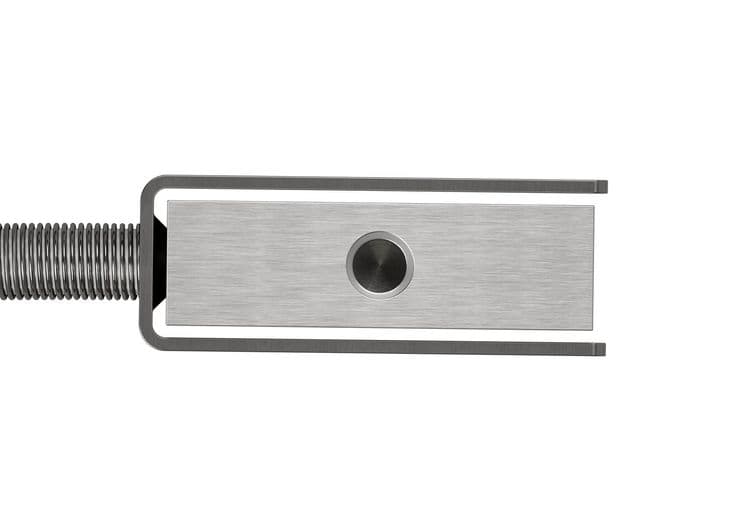

ISA S-Beam Force Sensor

ISA S-Beam Force Sensor (1 - 10lb)

ISA S-Beam Force Sensor (1 - 10lb) - ISA-5lb-M -1.5M CABLE - NO CONNECTOR

ISA S-Beam Force Sensor (1 - 10lb) - ISA-2lb-M -1.5M CABLE - NO CONNECTOR

ISA S-Beam Force Sensor (1 - 10lb) - ISA-1lb-M -1.5M CABLE - NO CONNECTOR

ISA S-Beam Force Sensor (1 - 10lb) - ISA-10lb-M -1.5M CABLE - NO CONNECTOR

1 - 10lb

ISA S-Beam Force Sensor(1 - 10lb)

ISA S-Beam Force Sensor(1 - 10lb)
