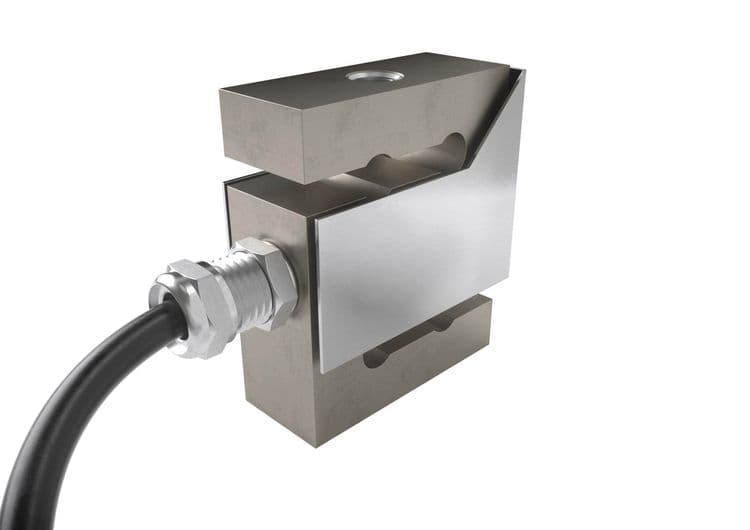

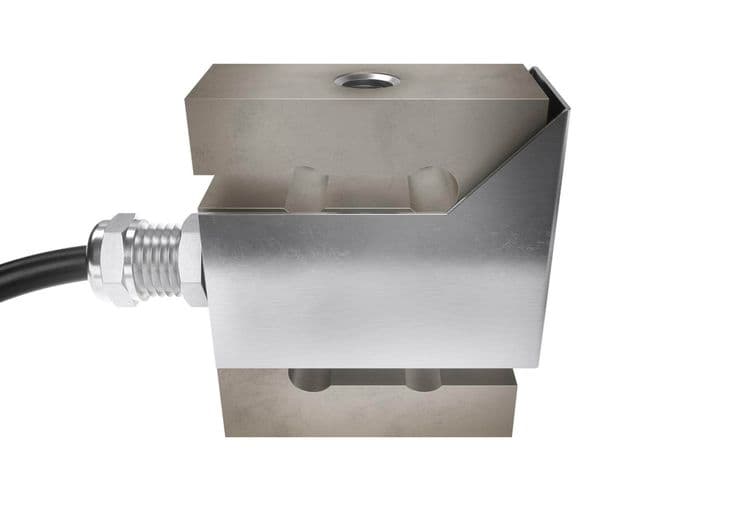

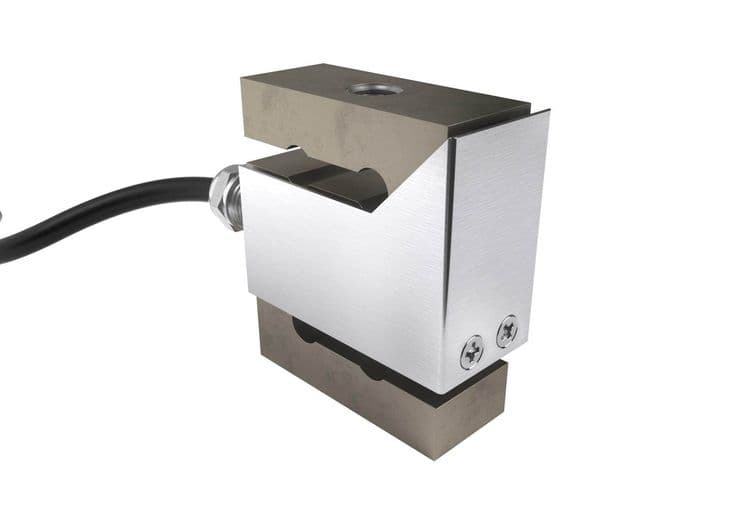

UXT Tension Load Cell (50 – 7,500kg)
The UXT tension load cell offers a wide range of capacities, extending from 50kg to 7,500kg. Constructed from alloy steel with an electroless nickel-plated surface, it’s a robust and reliable choice and an economical alternative to our popular ULB tension load cell.
- A wide range of capacities from 50kg to 7,500kg
- OIML approval to C3 (Y=10,000)
- Electroless nickel-plated alloy steel body with protective cover
- Environmentally sealed by potting to IP67
- Tension and compression loading (bi-directional)
- Available in metric and imperial thread form
Suspended tanks and hoppers, crane scale. Suitable for general applications in the process weighing and process automation and control sectors.
